Compatible with all model years, also compatible with BMW i8 Roadster.
This is not a stand-alone device. Must be connected to and controlled by a GPS tracker, immobilizer, breathalyzer, car security system or similar, with positive or negative output trigger. It will prevent the vehicle from starting once triggered. Applications include: fleet management, rental car, anti-theft, etc.
The device's wire colors match the color of the corresponding wires in the vehicle.
Detailed installation instructions with pictures.

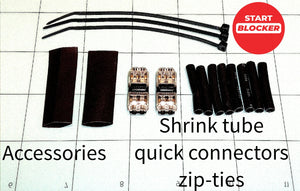

Pre-made harness for easy installation.
Compatible with positive and negative trigger output control devices.
Digital input, designed specifically to read LIN data bus communication of BMW i8
Status indication.
Zero surges, back EMF or spikes while operating. No need for transient suppression, clamping, etc. to drive the device, unlike driving a relay.
Small footprint - only 1/2 the size of a commonly used relays.
Extremely durable.
Extremely small power consumption (10% of that of a conventional relay), waterproof, can withstand extreme temperatures and pressure, friction-proof insulation on all wires with braided tubing, ESD protection on all inputs and outputs, high input impedance, reverse polarity protection, galvanically insulated outputs, built with premium automotive grade components from US, Japanese and German companies only (NXP, TE Connectivity, ON-Semicon, Panasonic, Kemet, Rohm, Vishay).
Made in New York, USA
Lifetime warranty
Fast and free shipping (US only)

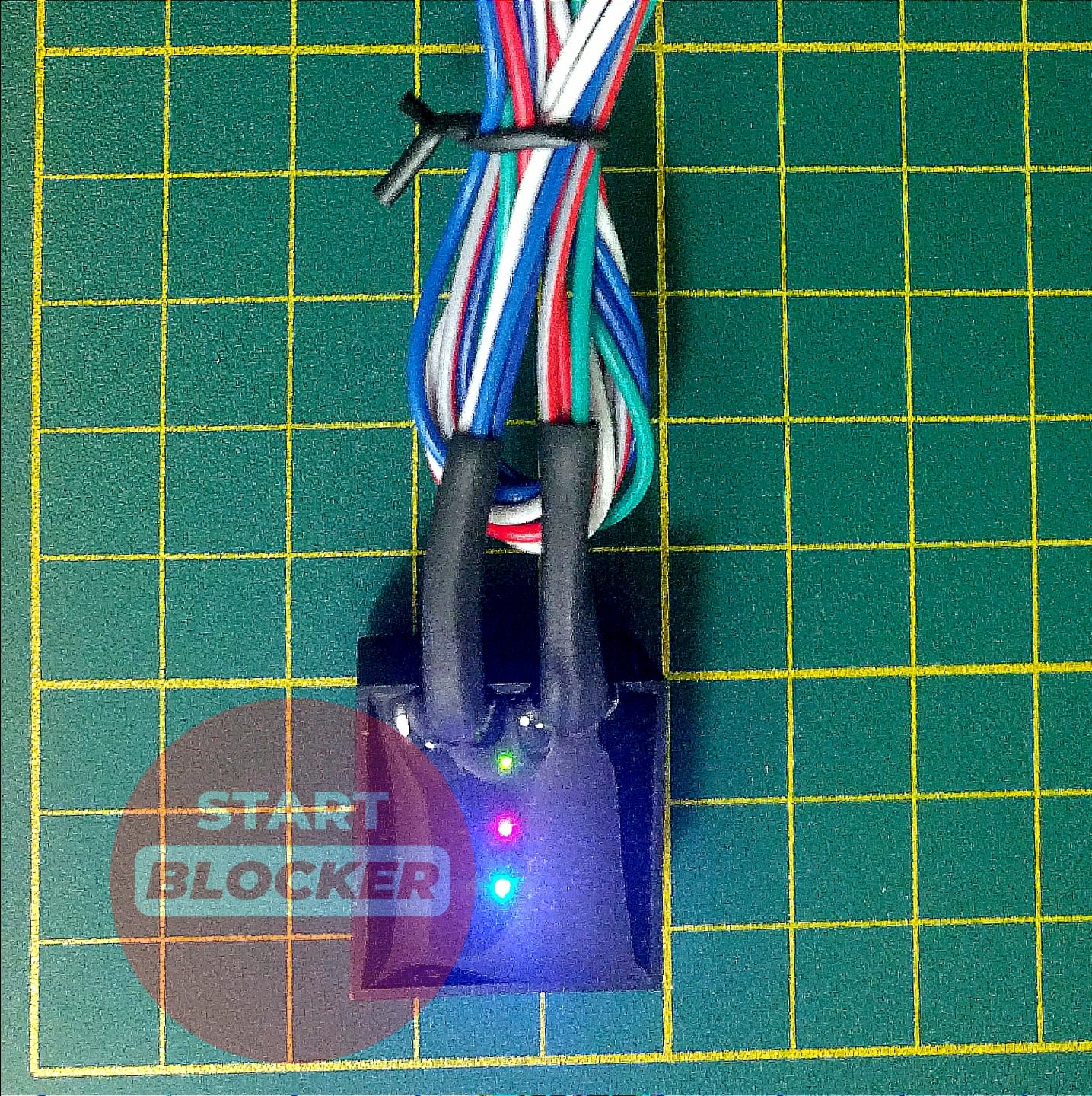

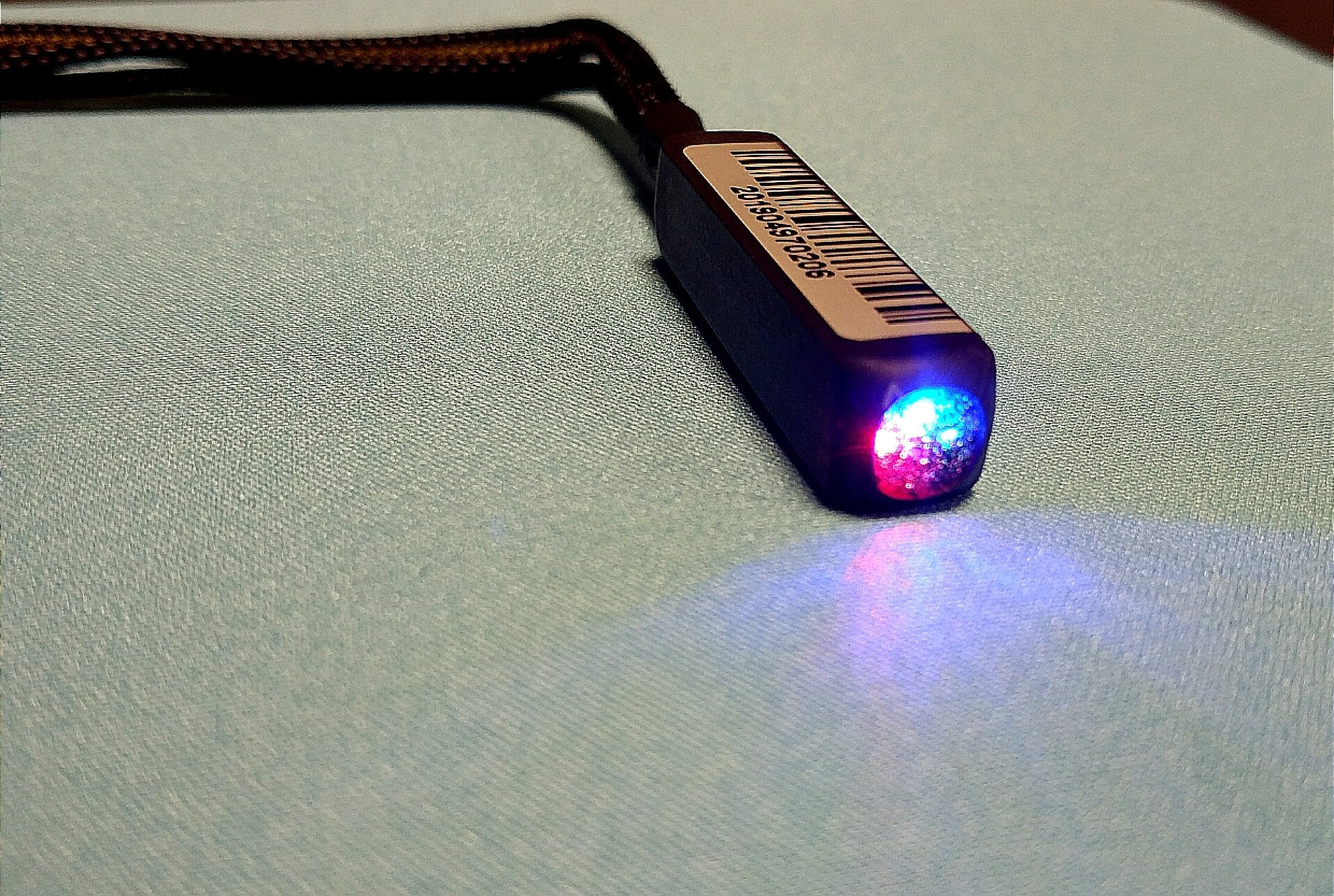

Indicators:
- Green indicator On: Start Disable requested.
- Blue indicator On: Vehicle is running or in motion.
-Red indicator On: Start is Disabled
Attention!
For safety reasons Start Disabling will not be executed until the device senses the vehicle is stationary, engine is OFF and a door was open.
Product specifications:
Operating voltages: 10.5 - 17V @ 72 F (22 C)
Consumption: 8mA when ON, 33uA when OFF
Output current rating: 1A per channel
Input sensitivity: 1.8 - 5.5V
Input impedance: >460KOhm @ 1KHz, 5V P/P

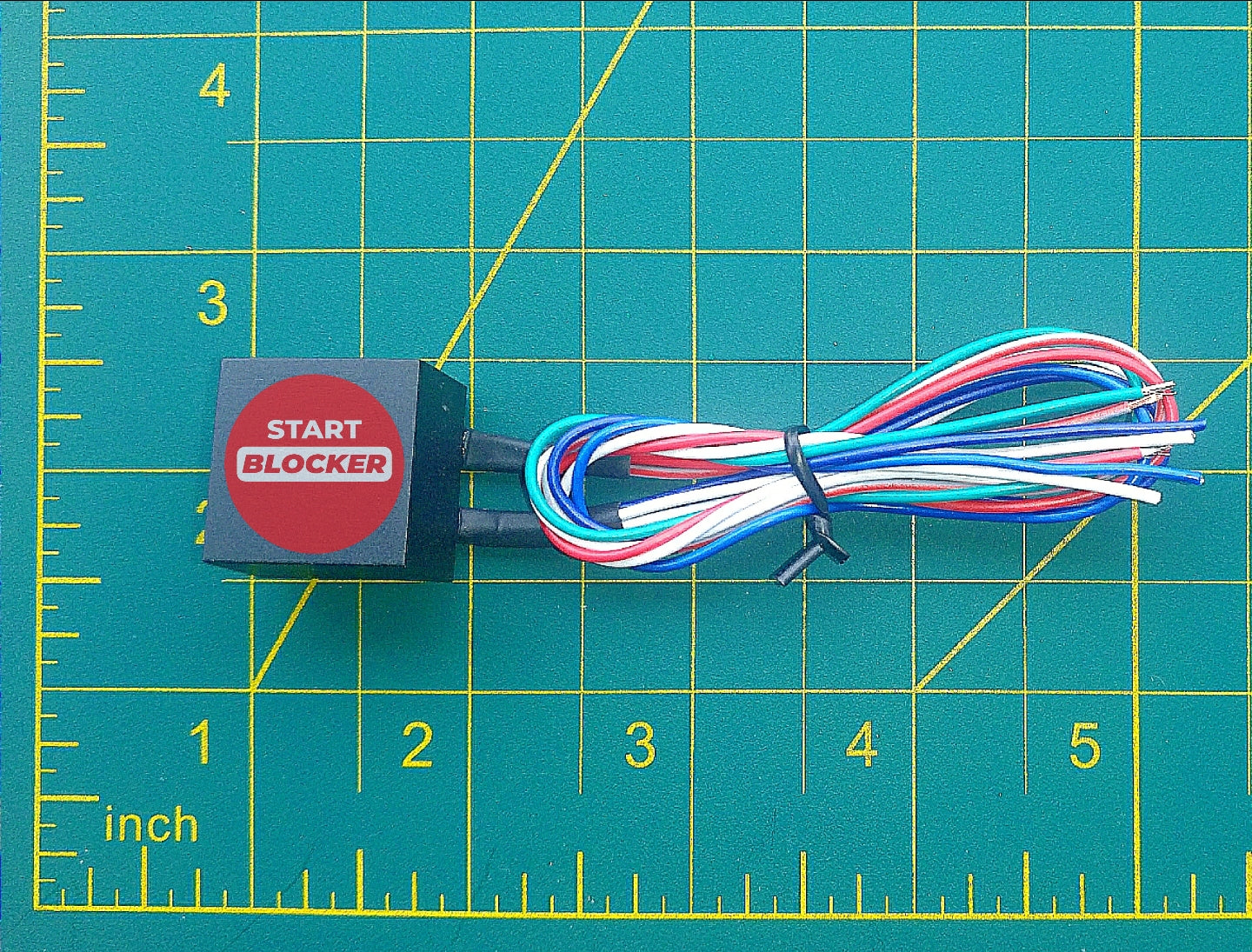

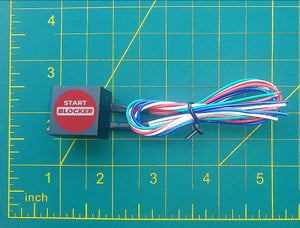

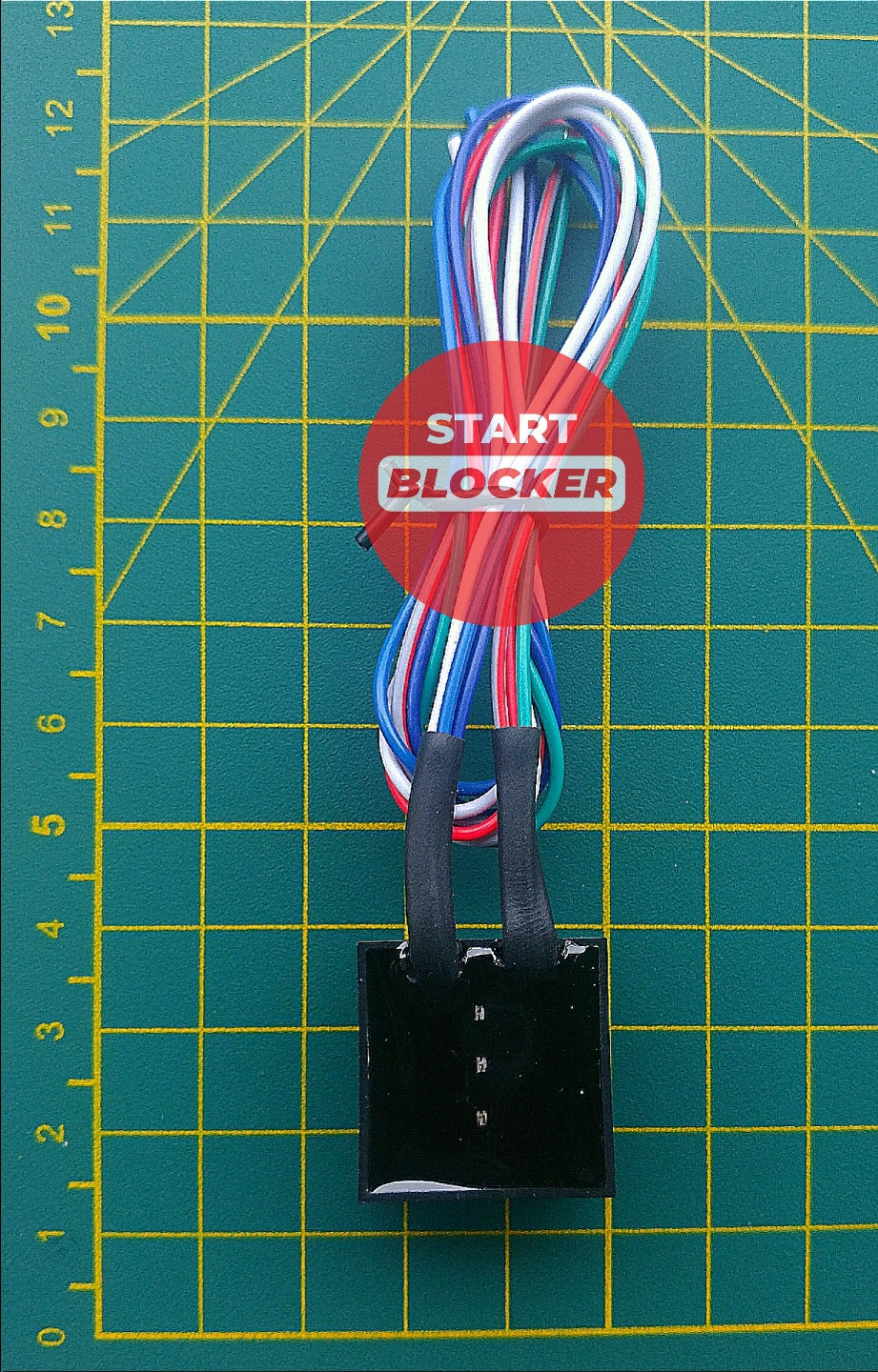

Dimensions : 0.9" X 0.9" X 0.5" (22mm X 22mm X 12mm), excluding the harness
Weight: 1.6 ounce (45 gram), including the harness
